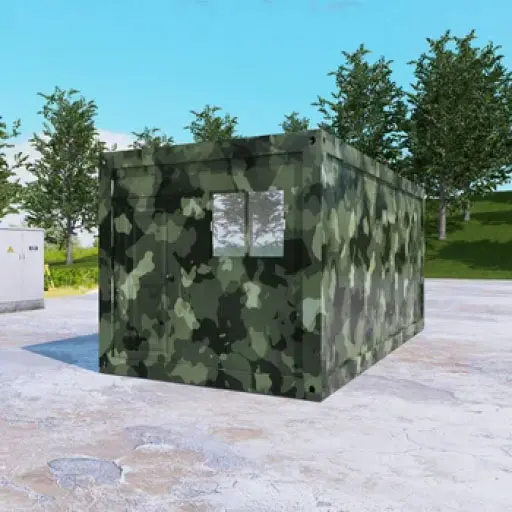

The Folding Container House for Military Camps
Product Parameters
Frame Structure: High-strength steel frame with Q235 Galvanized fittings, ensuring the house's structural integrity and resistance to environmental factors.
Roof System: Steel frame with blue-colored pre-painted 0.4mm thick steel plate exterior and 50mm glass wool insulation for thermal efficiency.
Floor System: 3mm galvanized steel main structure with 1.5mm square tube secondary beams, topped with 15mm particleboard and PVC flooring.
Wall System: Rock wool/PU/PIR sandwich panels with thickness options of 50mm/75mm/100mm, providing excellent insulation and soundproofing.
Door & Window System: Steel doors and aluminum alloy double-glazed windows with mosquito nets for security and comfort.
Electrical System: Complete with LED lights, sockets, air switches, and a safety protection device-connected cable box for power supply.
Wind Load Resistance: Designed to withstand wind speeds of up to 120 km/h, ensuring the house remains secure in high wind conditions.
Earthquake Resistance: Capable of withstanding earthquakes up to grade 8, suitable for seismically active regions.
Snow Load Capacity: The roofing is designed to bear a snow load of 0.6kn/m², adapting to regions with heavy snowfall.
Raw Materials
Galvanized Steel: For the frame and roof panels to prevent rust and enhance durability.
Glass Wool: For insulation, providing thermal efficiency and noise reduction.
Particleboard and PVC: For flooring, offering a durable and easy-to-maintain surface.
Production Process
Design: Engineered for maximum water runoff and structural integrity, with a focus on quick deployment and easy transportation.
Manufacturing: Precision manufacturing techniques ensure each component is made to exact specifications.
Assembly: The container house is assembled with attention to detail, ensuring all parts fit perfectly and function smoothly.
Usage Scenarios

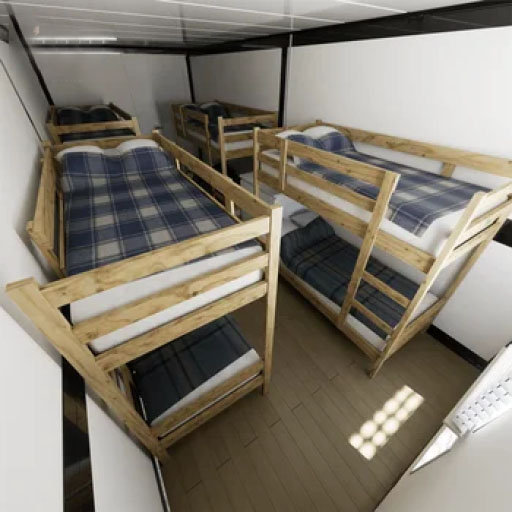

Temporary Accommodations: Ideal for military operations, disaster relief, or remote work locations.
Permanent Residences: A cost-effective and sustainable housing option for military personnel.
Command Centers: Suitable for military command and control centers due to their durability and security features.
Field Hospitals and Storage: Can be quickly deployed as field hospitals or storage facilities in remote areas.
Quality Inspection
Structural Testing: Each unit undergoes testing to ensure it can withstand heavy loads and harsh conditions.
Weather Resistance: Tested for resistance to wind, rain, and snow to ensure long-term reliability.
Safety Compliance: Meets or exceeds all safety standards for temporary and permanent housing.
Packaging and Transportation

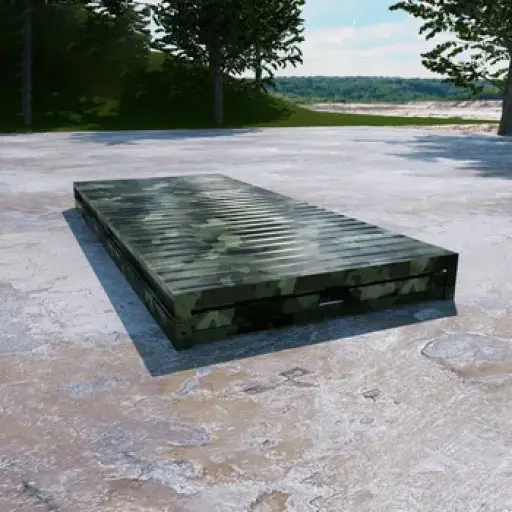

Compact Design: When folded, the structure is no larger than a standard shipping container, making it easy to transport using existing logistics infrastructure.

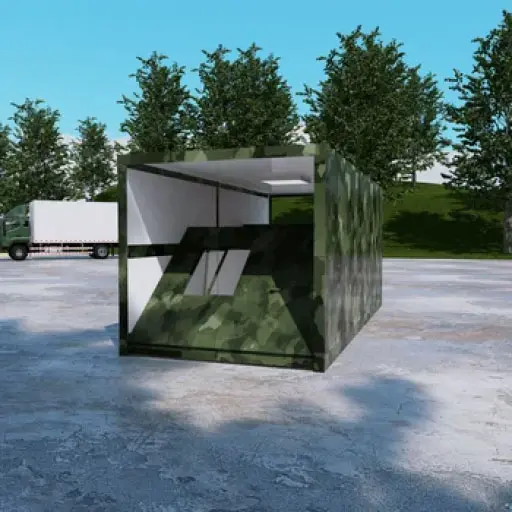

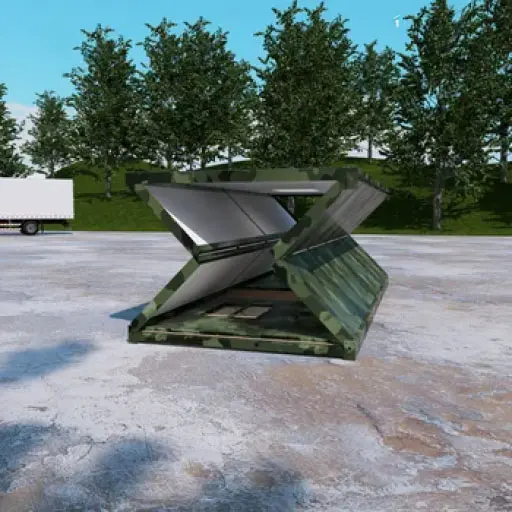

Quick Deployment: The container can be quickly unfolded and secured at the destination, transforming into a livable space within hours.
After-Sales Service
Installation Support: Assistance with setup and installation at the desired location.
Maintenance: Guidance on routine maintenance to keep the container house in optimal condition.
Warranty: Offers a comprehensive warranty covering defects in materials and workmanship.
Payment Settlement
Deposit: A deposit is required upon signing the purchase agreement.
Final Payment: The remaining balance is due upon delivery and acceptance of the product.
Invoice: A formal invoice will be provided for accounting and tax purposes.
